Goodwin International valves
Non-return check valves engineered for demanding industrial applications
Goodwin International is the world’s foremost manufacturer of Dual Plate and Axial Nozzle non-return check valves, combining over a century of engineering heritage with a rigorous commitment to design excellence and quality.
Whether you need Dual Plate or Axial Nozzle designs for critical service applications, we hold significant inventory across multiple sizes and pressure classes.
Stock range & specifications

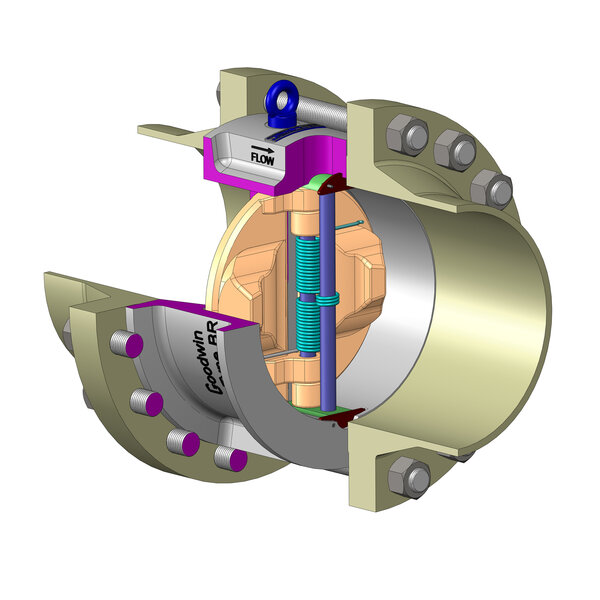

Goodwin BR range

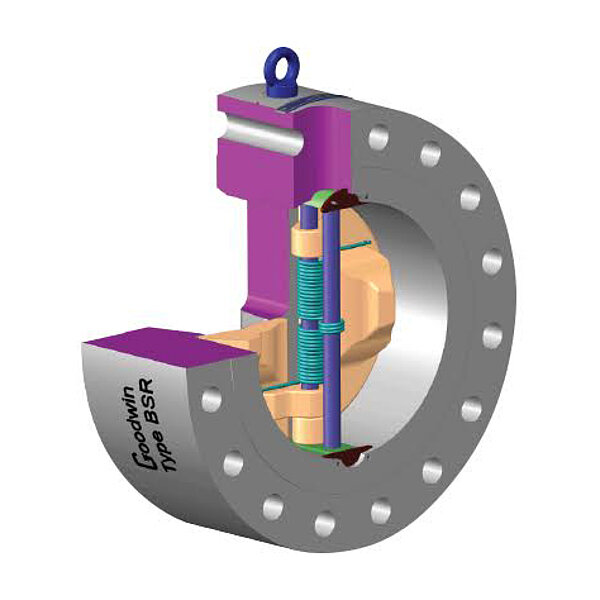

Goodwin BSR Range

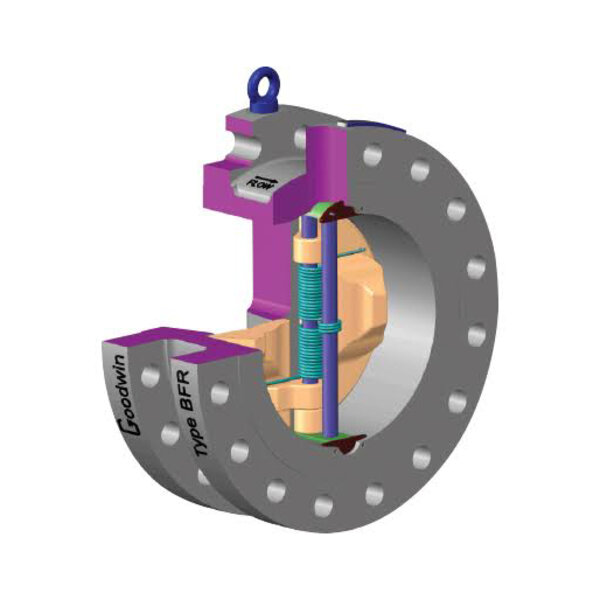

Goodwin BFR Range

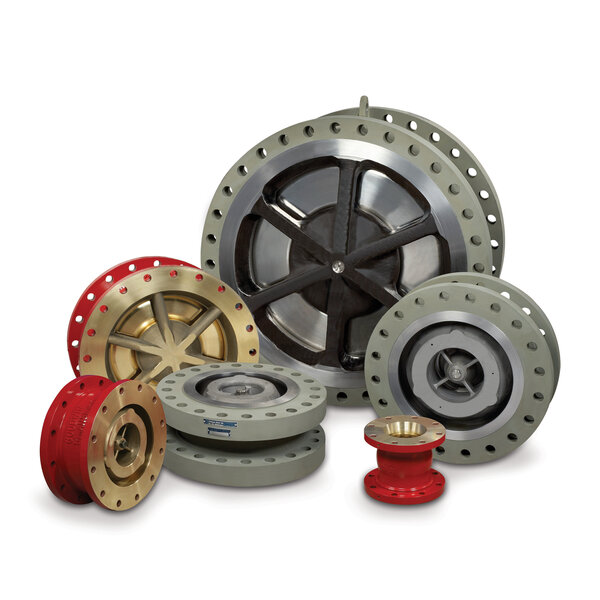

Goodwin Axial Range
Dual Plate check valves
- We stock a wide range of check valves including BR, BSR, BFR and BTR
- Higher integrity pressure vessel than retainered designs
- Fugitive emission-free design
- No thread corrosion risk – no screwed body plugs
- Tamperproof construction
- No plug blow-out risk
- Easy disassembly – only an Allen wrench required
Axial Nozzle check valves
- Very quick response with no surge
- Friction-free radial guide system
- Balanced central guided system
- Low seat leakage – metal to metal sealing
- No soft seals – fire-safe by design
- Low pressure loss – energy savings on pump and compressor
- High flow efficiency reducing total life cycle costs
- 70+ years of proven technology and experience
Range includes
Dual Plate Check Valve (BR & BSR)
- Size Range: 2” – 48” up to class 2500
- Materials such as: Carbon Steel, Low Temp Carbon Steel, CF8M, F316L, C5, C12, F51, F55, Ali Bronze Both Soft and Metal Seated
Tapped lug check valves (BTR)
- Size range: 2” – 10”
- CL 150 – CL 600 in WCB in trim 5 or monel trim
- Soft & metal seated options available also
Double flanged check valves (BFR)
- Size range: 2” – 48”
- CL 150 – CL2500
- Materials include WCB, LCC, CF3M / (CF8M), F55 Super Duplex
Axial Check Valves
- Size Range: 1” – 12” up to class 2500
- Materials such as: Low Temp Carbon Steel, F316L, F55
Request a Quote
Our inventory is constantly being updated.
Please contact us with your requirements and we will match you with the exact valve for your needs.
